What settings do I need to set up after installing a printer driver ? （FAQ No.01739）
回答
When you installed a printer driver, you need to configure the driver to accommodate installed trays to the machine. Normally, this setup is automatically set at the installation of a printer driver to accommodate MFP’s optional device configuration. When you unchecked [Auto Configuration] or change the settings, please follow the procedure below.
The following procedure takes BP-20C25 as an example.
You can configure the settings automatically or manually.
Please set up manually if you use IPv6 for a network connection or when Auto Set does not work properly.
1. Open [Printer Properties].

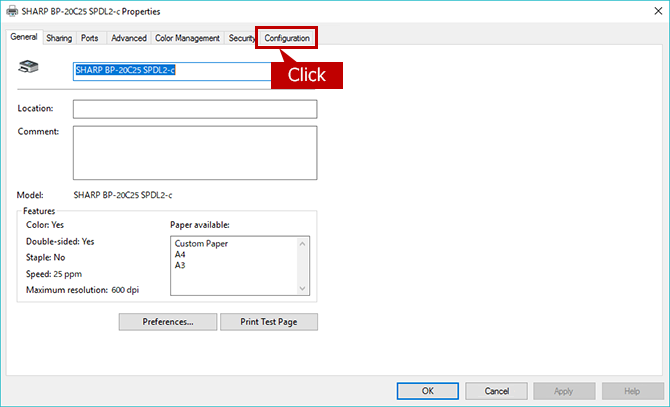

2. Show Configuration.
Click the [Configuration] tab.

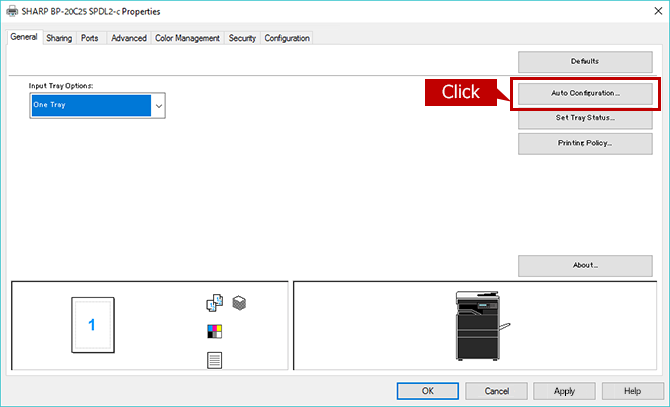

3. Start Auto Configuration.
When you click the [Auto Configuration] button, the setting update begins automatically.

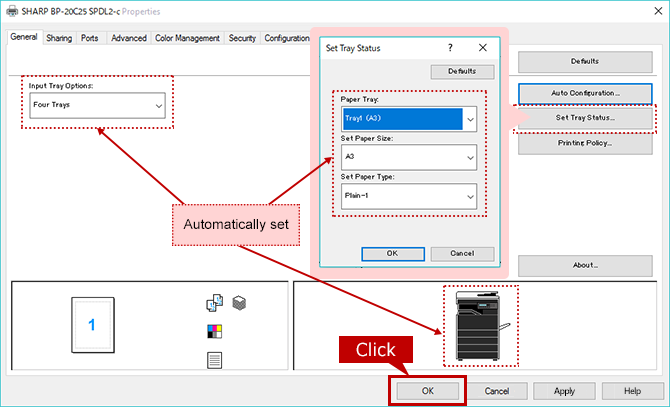

4. Update Machine Image (configuration).
Check each item that automatically updated then click the [OK] button.
1. Open [Printer Properties].
2. Show Configuration.
Click the [Configuration] tab.

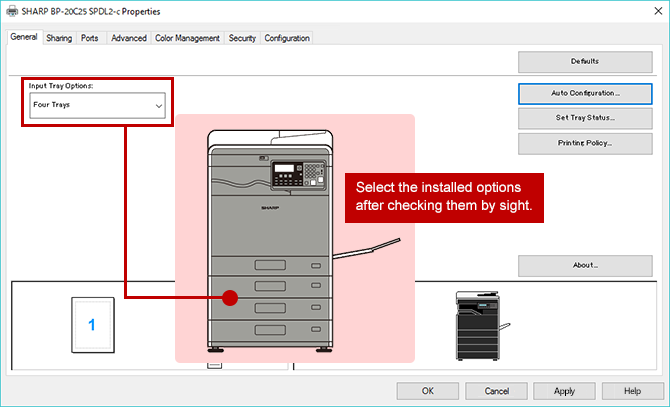

3. Configure the Settings for Paper Feeding Options.
For the settings of Paper Feeding Options, you should check the installed options by sight.

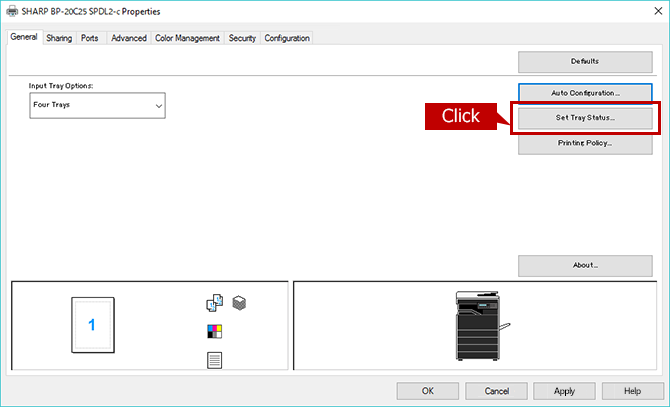

4. Set Up the Tray(s).
Click the [Set Tray Status] button.

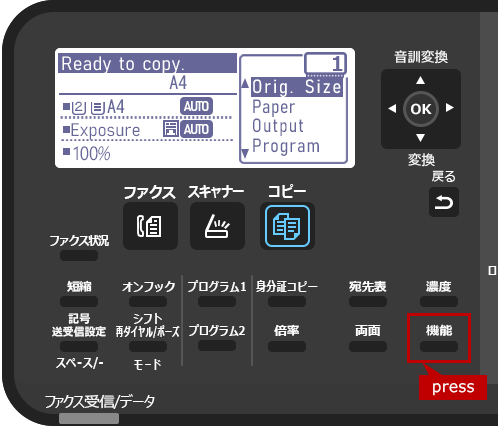

5. Check the Tray Settings on the operation Panel.
Press the [機能] button on the operation panel.

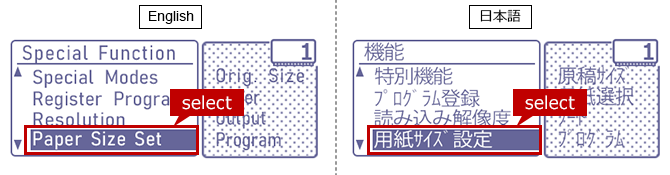

6. Open [Paper Size Set] page.
Select [Paper Size Set] and press the [OK] button.

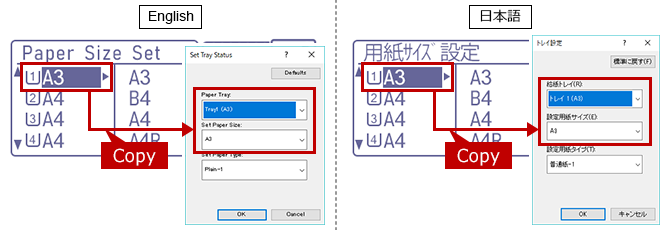

7. Register the Settings to [Paper Size].
Looking up paper size settings information and copy the settings to the [Set Paper Size] of Printer Properties.

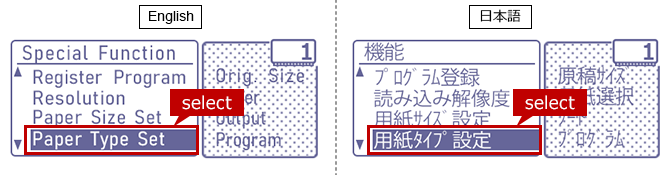

8. Open [Paper Type Set] page.
Select [Paper Type Set] and press the [OK] button.

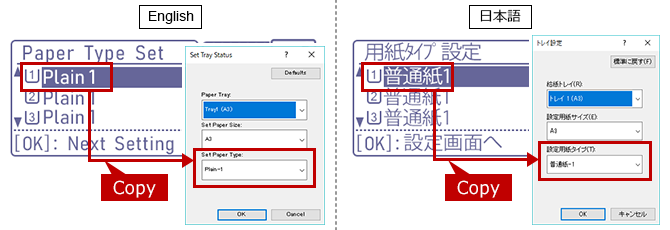

9. Register the Settings to [Paper Type].
Looking up paper type settings information and copy the settings to the [Set Paper Type] of Printer Properties.

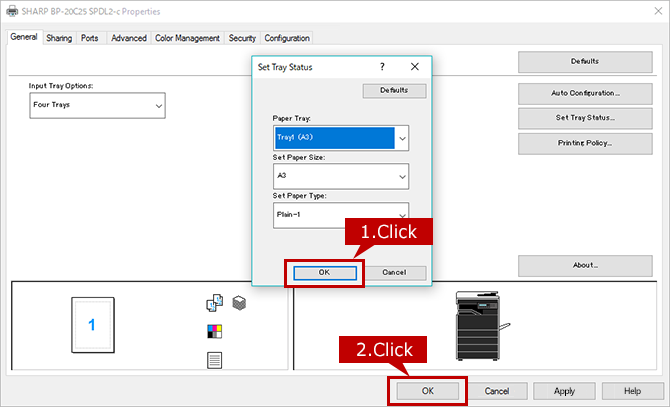

10. Complete the Setup.
Click the two [OK] buttons to complete the setup.
