RECEIVING A FAX
This section explains how to enter a destination from
the initial screen of easy mode.
EASY MODE
RECEIVING A FAX AUTOMATICALLY
When the reception mode is set to "Auto Reception", the machine will
receive and print faxes automatically.
- When fax reception is in progress,
it is possible to reserve a transmission by performing the transmission
in memory transmission mode.
FAX TRANSMISSION METHODS
- The information indicator blinks in white
from the start of fax reception until printing is completed.
- To print received faxes, make sure that
the required paper is loaded into the machine's paper trays. It
is not necessary to load A4 (8-1/2" x 11") paper and B5 (5-1/2"
x 8-1/2") paper in both the vertical (
) and horizontal (
) orientations. Differences in orientation
are automatically adjusted when faxes are received. When a
fax smaller than A4 (8-1/2" x 11") size is received, the size of
the paper used for printing will vary depending on the orientation
(vertical or horizontal) in which the sender placed the original.
- If a print job such as the copy or printer
function has already been executed when printing the received data,
the first reserved job is printed before the received data.
- Received faxes will not be printed when
the machine cannot print due to an error condition such as out of
paper, out of toner, or a paper misfeed. The faxes will be printed
automatically when the error condition is cleared. (If the paper
has run out, add paper and tap
on the touch panel.)
- You can check current fax reception mode
in the system area at the top of the screen.
- To
switch between auto reception and manual reception modes:
Select
[System Settings] in "Settings (administrator)" → [Image Send Settings] → [Fax Data
Receive/Forward (Manual)]
→ [Fax Settings] → [Receive Settings].
- Distinctive
Ring Detection
If multiple
telephone numbers have been assigned to your telephone line, the
number called can be identified by its ringing pattern. By using
one number for voice calls and another number for faxes, you can
tell which type of call you are receiving by the ringing pattern.
You can set your machine to automatically receive faxes when your
fax number is called by setting the pattern that corresponds to
your fax number.
In "Settings (administrator)", select [System Settings] → [Image Send Settings]
→ [Fax Settings] → [Default Settings]→ [Distinctive Ring Detection].
The machine rings and fax reception begins automatically.
When reception begins, the information indicator blinks
in white.
A beep sounds when reception ends.
The faxes are printed automatically.
When printing ends, the Information indicator turns off.
How to check the fax reception mode
You can check current fax reception mode in the system
area at the top of the screen.
RECEIVING A FAX MANUALLY
A fax can be received manually using the touch panel (manually).
To
switch between auto reception and manual reception modes:
Select [System Settings] in "Settings (administrator)" → [Image Send Settings]
→ [Fax Data Receive/Forward (Manual)] → [Fax Settings] → [Receive Settings].
When the machine rings, tap the [Detail] key to
change to normal mode, and tap the [Speaker] key.
When the [Speaker] key is tapped, the [Receive]
and
appears.
EASY MODE
- To adjust the speaker volume, tap
the key and adjust with the slider or
keys.
- If the received fax data remains unprinted,
it will cause the fax memory to fill up, which may prevent some
faxes from being received. When using this function, you should
print the received data as soon as possible without leaving it in the
fax memory.
You can
view the remaining fax memory capacity on the fax mode base screen.

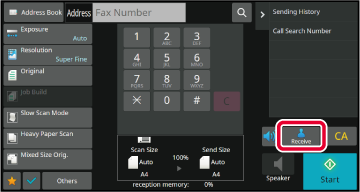

Tap the [Receive] key to receive a fax.
When printing ends, the Information indicator turns off.
