COPY COLOR MODES

Select the color mode from Auto, Full Color, B/W, 2 Color, and Single Color.

Auto

The machine automatically detects whether each original is color or black & white and switches the mode appropriately (full color for a color original or black & white for a black & white original).

Full Color

The original is copied in full color.

B/W

The original is copied in black and white.

2 Color

The original is copied in two colors by changing a specific color used in the original to another color. If red is set to a specific color, reddish parts in an original are extracted, and changed to the specified color to make a copy.

Single Color*

The original is copied in any one color regardless of the colors used in the original.

* Can be set in normal mode.

If any color mode is selected, copying takes place in black and white when you tap the [B/W Start] key.

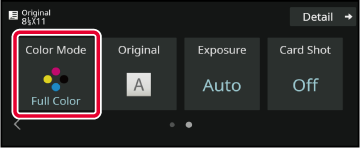

Tap the [Color Mode] key.

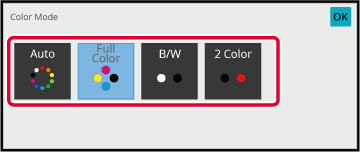

Select the color mode.

After the settings are completed, tap [OK] key. Check that the specified color mode is selected.
  • When auto mode is used, there may be some originals for which switching between color and black & white does not take place correctly. If so, tap the [Color Start] or [B/W Start] key to manually switch between color and black & white.
  • When [B/W Start] is selected, the [Color Start] key cannot be tapped.

COPYING IN TWO COLORS

The original is copied in two colors by changing a specific color to another color.

Tap the [Color Mode] key.

Tap the [2 Color] key.

Tap the [Change] key.

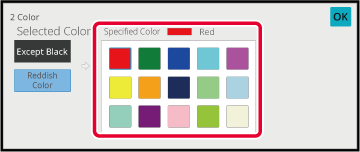

Tap the key of the color to be extracted to specify the extract color.

  • [Except Black]:
  • Extracts black parts in an original, and changes non-black parts to the specified color.
  • [Reddish Color]:
  • Extracts reddish parts in an original, and changes them to the specified color.

Specify the color to change the extracted color to.

After the settings are completed, tap the [OK] key on the [2 Color] screen, and check that the changed setting is displayed at the side of [2 Color] key on the color mode screen.
After you have checked it, tap [OK]. Check that the specified color mode is selected.

COPYING IN SINGLE COLOR

The original is copied in any one color.

Tap the [Detail] key to change to normal mode.

EASY MODE

Tap the [Color Mode] key.

Tap the [Single Color] key.

Tap the [Change] key.

Tap a color you wish to use.

After the settings are completed, tap [OK] on the [Single Color] screen, and check that the changed setting is displayed at the side of [Single Color] key on the color mode screen.
After you have checked it, tap [OK] on the [Color Mode] screen.
