REMOTE OPERATION OF THE MACHINE

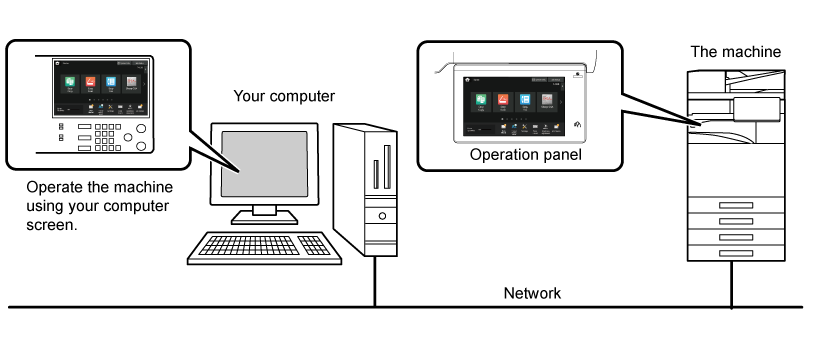

Remotely operate the machine on your computer or mobile
device such as smartphone.
You can operate the machine from the same panel as the machine's
operation panel that is displayed on your PC, with the same feel
as operating in front of the machine.
The remote operation function can only be used on one
device at a time.
Before you can use the remote operation function, the following
preparation is required.
- In "Settings (administrator)",
select [System Settings] → [Common Settings] → [Operation Settings] → [Condition Settings]
→ [Remote Operation Settings] → [Remote Software Operation] and select [Allow] for
[Operational Authority].
- Connect the machine to the
network.
- Install a VNC application
software (recommended VNC software: RealVNC) in your device.
After the preparation is completed,
you can operate the machine from a VNC client. For instructions
on how to connect
to the machine from a VNC client, see the VNC application manual.
- When the VNC client connects to the
machine, a message will appear on the operation panel of the machine.
Follow themessage on the operation panel of the machine to permit
the connection.
- When the machine is connected to a VNC
application software,
appears on the fixed display area of
the machine's touch panel. If you wish to disconnect, exit the VNC
application software or tap
.
- Use the operation panel in the same way
as you would on the machine. However, you cannot enter values in
series by continuously clicking the key.
