HOME SCREEN

Tapping the [Home Screen] key displays the home screen on the touch panel. The home screen displays the keys for selecting modes or functions.

OVERVIEW

Machine Status Information area

Tap this area to display the Machine Status screen.

MACHINE STATUS SCREEN

[Home Screen]

Switch to the home screen.

Mode selection area

The mode selection screen is displayed.

Shortcut keys

Select shortcut keys for modes or functions.

MACHINE STATUS SCREEN

Fixed display key

Use these keys to select functions that make the machine easier to use.

[Job Management] key

Displays the job in progress or waiting with text or icon.

MACHINE STATUS SCREEN

Action panel

Select functions that can be utilized in respective modes. Tap the tab, and the list of function keys is displayed.

ACTION PANEL

Home screen page switching key

Switch the pages for displaying shortcut keys.

Clock

Displays the time.

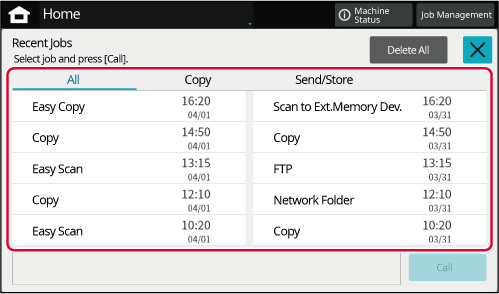

Recent jobs

Tap this key to display the contents of the most recently used up to 10 jobs in a list.

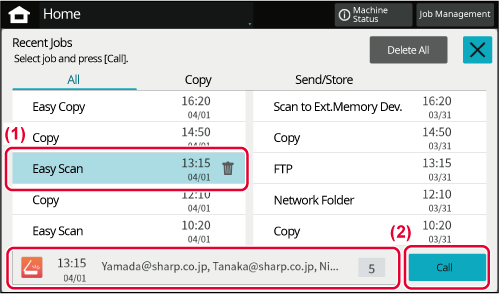

(1) Tap an item in the list and the details of the selected job will appear at the bottom of the touch panel.
(2) Tap the [Call] key to set the contents of this job.

The Recent Jobs function is not available during user authentication.

ICON INDICATING THE STATUS OF THE MACHINE

Icon	Machine status	Icon	Machine status
	Printer data is being processed.		A USB device is installed.
	Printer data is being printed.		The field support system is enabled.
	Send data exists.		Single-byte alphanumeric character entry
	Forward error data exists.		A data security kit is installed.
	Received data exists.		A LAN cable is not connected.
	OSA communication is in progress.		A maintenance notification is issued.
	Enlarge display mode is enabled.		Remote operation is in progress.
	Eco mode is enabled.		Extended FSS function is enabled.

CHANGING MODES

Changing mode from the Home screen

Changing mode from the mode display

In "Settings" (administrator), [System Settings] → [Common Settings] → [Operational Settings] → [Mode Key Display Settings] → [Display Mode Selection Screen] can be used to display or not display the mode selection screen.

For procedures for editing the home screen, see " EDITING THE HOME SCREEN".

PREVIEW SCREEN

In the preview screen, you can view output images or images stored in the machine using the touch panel.

[Easy mode]

[Normal mode]

Keys used in the preview screen

	This changes the mode to edit mode. Pages of the original can be changed, rotated, or deleted.	*	This rotates the preview image of whole page in the arrow's direction. The printing result is not rotated.
*	This reduces the image.	, *	This displays preview images of respective pages.
*	This displays the scroll bar for enlargement/reduction operations. Moving the slider to the left reduces the image, and moving the slider to the right enlarges the image.		This displays thumbnails of preview images.
*	This enlarges the image.	*	This displays pages in a 3D view.

The display position of an image can be moved by dragging it while it is enlarged.
To enlarge an image, double-tap it when the preview image is displayed by page.

Deleting a page

In the preview screen, tap to switch to edit mode.

Tap the page you want to delete, and tap .

You can also delete the page by tapping [Delete the Page] on the action panel.
You can also delete the page by dragging a page to .

To undo the deletion, tap . To redo the deletion, tap .

Tap the [Edit End] key.

Moving a page

In the preview screen, tap to switch to edit mode.

Tap the page you want to move, and drag to move the page.

You can also move the page by tapping [Move the Page] on the action panel and then tap

of the destination.

Tap the [Edit End] key.

Rotating a page

In the preview screen, tap to switch to edit mode.

Tap the page you want to rotate, and drag or to rotate the page.

You can also rotate the page by tapping [Rotate 180 Degrees] (Copy mode only) or [Rotate 90 Degrees] (Scanner mode only) on the action panel.

Tap the [Edit End] key.

Setting chapter inserts

When N-Up or 2-Sided is specified, you can move a page marked with to the first page.

In the preview screen, tap to switch to edit mode.

Tap the page you want to set chapter inserts.

Tap .

is displayed on the page.

You can also set chapter inserts by tapping [Specify Chapter Inserts] on the action panel.
To cancel the Chapter Inserts setting: Tap displayed on the page, or select the page and tap [Cancel Chapter Inserts of Selected Page.] on the action panel.

Tap the [Edit End] key.
