STAPLING OUTPUT

STAPLE FUNCTION

The staple function staples the output. To create materials with more sophisticated appearance, the staple function can be used in combination with 2-sided printing.
This function saves considerable time when preparing handouts for a meeting or other stapled materials.

Orientation Left Right Top
Vertical
Horizontal
* The staple orientation (" " or " ") varies depending on the size and orientation of the paper.
  • An inner finisher is required to use the staple function.
  • For the maximum number of sheets that can be stapled, see "SPECIFICATIONS" in the Start Guide.
  • The maximum number of sheets that can be stapled at once includes any covers and/or inserts that are inserted.
  • The staple and offset (shifting the position of the paper that is output for each job) functions cannot be used simultaneously.
  • When the inner finisher is disabled in the machine's settings, the staple function cannot be used.
  • When the staple function is disabled in the machine's settings, stapling is not possible.

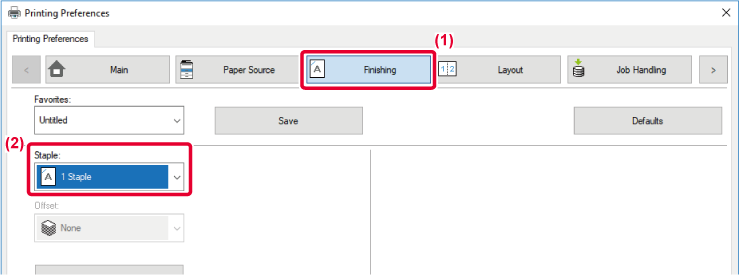

Windows

  1. Click the [Finishing] tab.
  2. Select [1 Staple] in "Staple".
    3. For the staple function, select "1 Staple" in the "Staple" menu and the staple position in the "Settings" menu.
In addition to the [Finishing] tab, [Staple] can also be set on the [Main] tab.

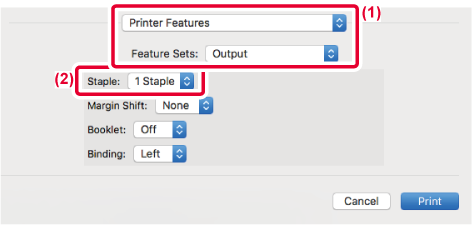

macOS

  1. Select [Printer Features] and then select [Output].
    2. In macOS 13, [Printer Features] is located under the "Printer Option" menu.
  2. Select [1 Staple] in "Staple".
[Binding Edge] cannot be set.
