To use the machine as a facsimile, connect the telephone
line, and set the telephone line type.
Connecting to the telephone line.

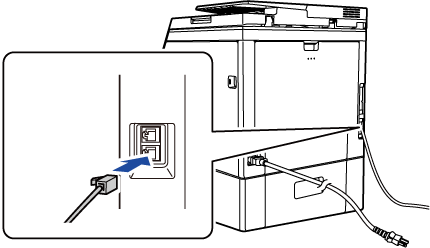

Insert the plug on one end of the telephone line cord
into the telephone line socket (LINE) of the machine as shown until it
clicks, and insert the other plug into a wall telephone socket until
it clicks.
In some countries, an adaptor is required to connect
the telephone line cable to the wall telephone socket, as shown
in the illustration.
If the connection cable is not properly connected,
"Sending has failed. Please check network connection." will appear when
you attempt to send a fax. Properly connect the connection cable.
Make sure the power plug is inserted in the power outlet.
When the power indicator is lit up, the power plug is
inserted in the power outlet. If the power indicator is not lit
up, insert the power plug in the power outlet.
TURNING ON THE POWERWhen using the machine for faxing, do not turn
it off, and keep it in the standby mode using the power save mode.
Setting the telephone line type.
The machine's dial mode setting must be set to match
the type of telephone line you are using.
* If the setting is incorrect, it may result in dialling
failures or cause calls to be made to the wrong destination.
-
If you want to set the type of telephone line automatically
From the
operation panel, select [System Settings] → [Fax Settings] → [Condition
Settings] → [Dial Mode Setting], and tap the [Auto Select] key. (in the
Web page, select [System Settings] → [Image Send Settings] → [Fax Settings] → [Default
Settings]
→ [Dial Mode Setting], and tap the [Auto Select] key.)
- If necessary,
you can set the type of telephone line manually.
- This setting
can only be activated in Canada.
When you
connect to a digital line When Digital Line Network is enabled,
the send level will be 15 dB or less when you connect to a digital
line. From the operation panel, select [System Settings] → [Fax
Settings] → [Condition Settings] → [Digital Line Network] (in the
Web page, select [System Settings] → [Image Send Settings] → [Fax Settings] → [Default
Settings]
→ [Digital Line Network]).
Checking the date and time.
Verify that the correct date and time are set in the
machine.
To
set the date and time of the machine:
In the operation panel or Web page, select [System Settings] → [Common Settings]
→ [Device Control] → [Clock Adjust].
Storing the sender fax number.
Store a sender name in [Sender Name] and a fax number
in [Fax No.]. Be sure to configure this information, as it is required
for communication.
To store
the sender's name and address:
From
the operation panel, select [System Settings] → [Fax Settings] → [Condition
Settings] → [Own Number and Name Set] (In the Web page, select [System Settings] →
[Image Send Settings] → [Common Settings] → [Own Number and Name Set] → [Sender Data
Registration]).
