IMAGE SETTINGS

If you placed originals of size other than the original size specified in “Default Original Size Settings” in the system settings, specify the original size manually

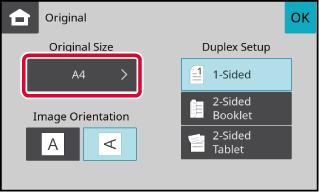

Tap the [Original] key.

Tap the [Orignal Size] key.

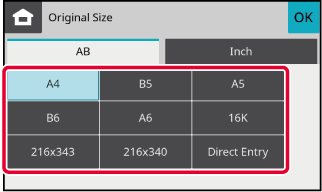

Tap a key of the desired original size.

After the settings are completed, tap .

When scanning a non-standard size original such as a card or postcard, specify the original size using numeric values after placing the original.
The width can be from 25 mm to 356 mm (1" to 14"), and the height can be from 25 mm to 216 mm (1" to 8-1/2").

Tap the [Original] key.

Tap the [Original Size] key.

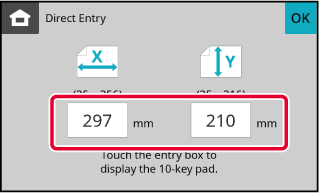

Tap the [Direct Entry] key.

Specify the original size.

Tap the areas displaying width and height sizes respectively, and enter the sizes using the numeric keys.

Tap [OK].

On the base screen, check that the specified size is displayed on the [Original] key.

Optimum scanning is ensured by selecting exposure and original image type based on the original.

How to select the original type

Exposure settings

Tap the [Exposure] key.

Tap the key assigned to the original type you wish to set based on the original type.

Tap to adjust the exposure.

After the settings are completed, tap .

Specify the resolution setting.

How to select the resolution

For normal text originals, 200 x 200 dpi produces an image that is sufficiently legible.
For photos and illustrations, a high resolution setting (600 x 600 dpi, etc.) will produce a sharp image.
However, a high resolution setting will result in a large file, and if the file is too large, transmission may not be possible. In this event, reduce the number of pages scanned or take other measures to decrease the file size.
CHANGING FORMAT IN SCAN
SPECIFYING THE ORIGINAL SCAN SIZE IN PAPER SIZE

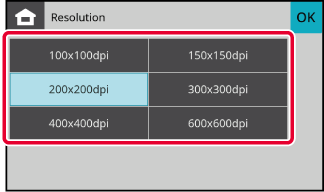

Tap the [Resolution] key.

Tap the key of the desired resolution.

After the settings are completed, tap .

Change the file format (file type and compression mode/compression ratio) for sending a scanned image at the time of transmission. In addition, if the scanned originals are divided into separate files, the number of pages per file can be changed.

File format combinations

Tap the [File Format] key.

If you are in data input mode, start from step 5.

Tap the [Colour/Greyscale] or [B/W] tab.

• The format setting for [B/W] mode is the file format with the [B/W Start] key is tapped.
• The format setting for [Colour/Greyscale] mode is the file format with the [Colour Start] key is tapped

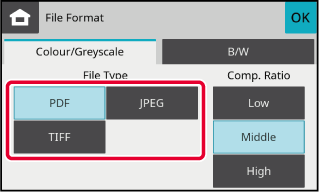

Tap the key of the desired file type.

When the [Colour/Greyscale] tab is selected

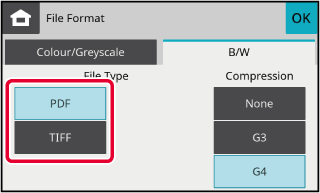

When the [B/W] tab is selected

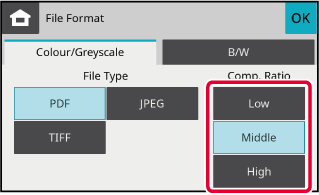

Tap the Compression key or Compression Ratio key.

When the [Colour/Greyscale] tab is selected

When the [B/W] tab is selected

When you want to file per page when [TIFF] is selected as the file format, set the [File per page] checkbox to .

• After the settings are completed, tap .
• When the checkmark is removed, one file is created for all pages.

The [Mono2/Grey] key changes the tone of the black and white original scanning when transmitting scans.

Tap the [Resolution] key.

Tap the [Mono2] key or [Greyscale] key.

When scanning a black and white original, set whether the original is to be scanned in mono2 or greyscale
After the settings are completed, tap .
