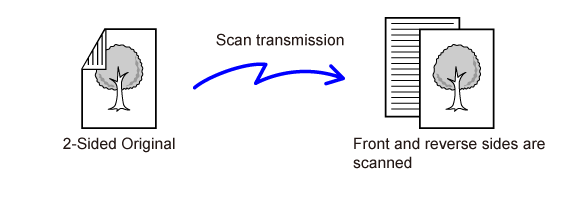

The automatic document feeder
is used to automatically scan both sides of an original.
.png)
After tapping the [Original] key, tap the [Book] or [Tablet] key.
See the figure on the left to check the binding edge of the original and select the key to be tapped.
Tap the [Image Orientation] key with the same orientation as the placed original.
If this setting is not correct, a suitable image may not be transmitted.
.
If you placed originals of size other than
the original size specified in “Default Original Size Settings”
in the system settings, specify the original size manually
Tap the [Original] key.

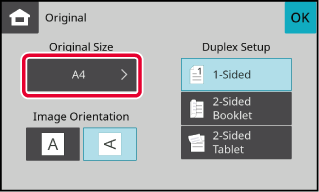

Tap the [Orignal Size] key.

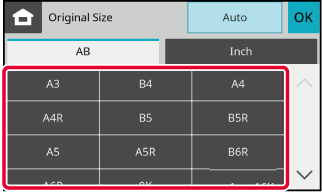

Tap a key of the desired original size.
After the settings are completed, tap.
When scanning a non-standard size original
such as a card or postcard, specify the original size using numeric
values after placing the original.
The width can be from 25 mm to 432 mm (1" to 14"), and the
height can be from 25 mm to 297 mm (1" to 8-1/2").
Tap the [Original] key.
Tap the [Original Size] key.

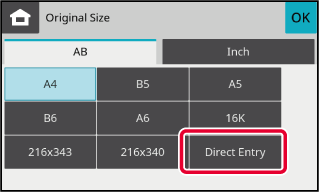

Tap the [Direct Entry] key.

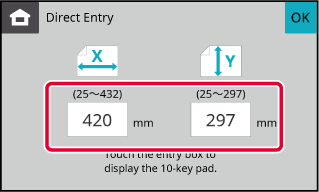

Specify the original size.
Tap [OK].
On the base screen, check that the specified size is displayed on the [Original] key.Optimum scanning is ensured by selecting
exposure and original image type based on the original.
| Setup Items | Description | |
|---|---|---|
|
Text |
Use this mode for regular text documents. |
|
|
Text/Printed Photo |
This mode provides the best balance for scanning an original which contains both text and printed photographs, such as a magazine or catalogue. |
|
|
Photo |
Use this mode to scan photos. |
|
| Exposure | Suggestion | |
|---|---|---|
|
Auto |
This setting automatically adjusts the exposure for light and dark parts of the original. |
|
|
Manual |
1-2 |
Select this setting when the original consists of dark text. |
|
3 |
Select this setting for a normal original (neither dark nor light). |
|
|
4-5 |
Select this setting when the original consists of light text. |
|

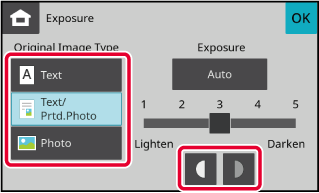

Tap the [Exposure] key.
Tap the key assigned to the original type you wish to set based on the original type.
Tap
to adjust the exposure.
.
Specify the resolution setting.
For normal text originals, 200 x 200 dpi produces an
image that is sufficiently legible.
For photos and illustrations, a high resolution setting (600
x 600 dpi, etc.) will produce a sharp image.
However, a high resolution setting will result in a large
file, and if the file is too large, transmission may not be possible. In
this event, reduce the number of pages scanned or take other measures
to decrease the file size.
CHANGING FORMAT IN SCAN
SPECIFYING THE ORIGINAL SCAN SIZE IN PAPER SIZE

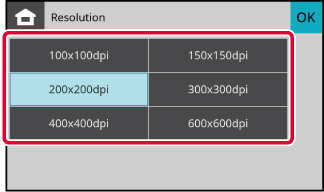

Tap the [Resolution] key.
Tap the key of the desired resolution.
After the settings are completed, tap.
Change the file format (file type and compression
mode/compression ratio) for sending a scanned image at the time
of transmission. In addition, if the scanned originals are divided
into separate files, the number of pages per file can be changed.
File format
combinations
| [Colour/Greyscale] tab | [B/W] tab |
|---|---|
|
|
|
|
TIFF |
TIFF |
|
JPEG |
TIFF |
Tap the [File Format] key.
If you are in data input mode, start from step 5.Tap the [Colour/Greyscale] or [B/W] tab.

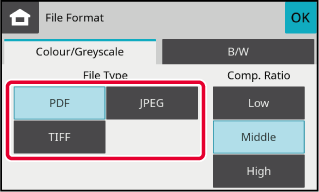

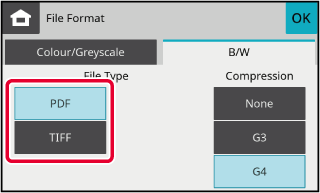

Tap the key of the desired file type.
When the [Colour/Greyscale] tab is selected

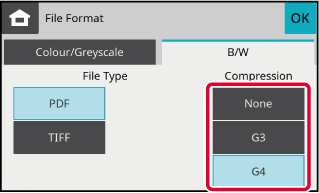

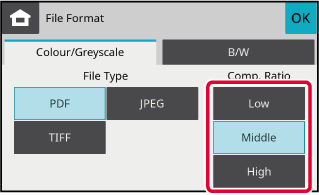

Tap the Compression key or Compression Ratio key.
When the [Colour/Greyscale] tab is selected
When you want to file per page when [TIFF] is selected
as the file format, set the [File per page] checkbox to
.
.The [Mono2/Grey] key changes the tone of
the black and white original scanning when transmitting scans.
| Mode | Scanning method |
|---|---|
| Mono2 |
Colours in the original are scanned as black or white. This mode is best for text-only originals. |
|
Greyscale |
The colours in the original are scanned in black and white as shades of grey (greyscale). |
Tap the [Resolution] key.
Tap the [Mono2] key or [Greyscale] key.
When scanning a black and white original, set whether the original is to be scanned in mono2 or greyscale.Version 01a / bp22c25_usr_01a_en
