REPLACEMENT OF TONER CARTRIDGE

Always replace the toner cartridge after the "Change the toner cartridge." message appears. You should keep one set of replacement toner cartridges on hand so that you can replace a toner cartridge immediately when toner runs out.

REPLACEMENT MESSAGE

When this message appears, prepare a toner cartridge for replacement.

If you continue printing, the following message appears.
When this message appears, prepare a toner cartridge for replacement and replace it.
In this state, printing is possible.
However, this message does not appear during printing.

If you continue to use the machine, printing will not be possible when the toner runs out.
Once the machine enters this state, printing can not be carried out until the toner cartridge is replaced.

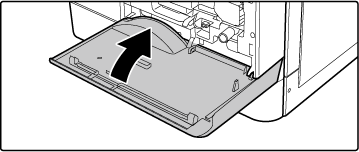

Open the front cover.

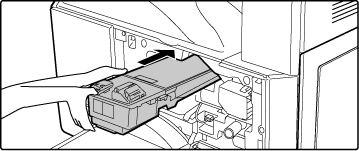

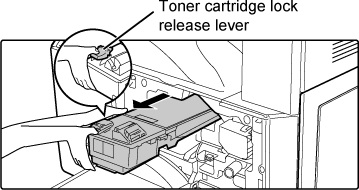

Pull the toner cartridge out while pressing the lock release lever.

When pulling out the toner cartridge, place your other hand on the indentation of the cartridge.
If the cartridge is pulled out abruptly, toner may spill out.

Take out a new toner cartridge from its package and shake it horizontally 4 or 5 times.

Insert the toner cartridge along the guides until it locks in place while pushing the lock release lever.

If there is any dirt or dust on the toner cartridge, remove it before installing the cartridge.

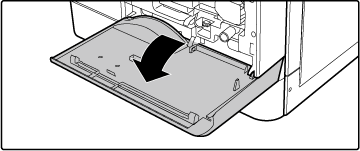

Close the front cover.

After the toner cartridge is replaced, the machine automatically enters image adjustment mode. Do not open the front cover while this is occurring.
Hold both sides and close.

Warning

  • Do not throw a toner cartridge into a fire. Toner may fly and cause burns.
  • Store toner cartridges out of reach of small children.
  • If a toner cartridge is stored upright, the toner may harden and become unusable. Always store toner cartridges on their side.
  • If a toner cartridge other than a SHARP-recommended toner cartridge is used, the machine may not attain full quality and performance and there is a risk of damage to the machine. Be sure to use a SHARP-recommended toner cartridge.
  • Do not throw away the removed toner cartridge, keep it in the box in which it was packed. Your service technician will collect them.
  • When toner runs out while the home screen is displayed, the "Toner Empty" message appears in the screen. Additionally, if the toner quantity is displayed on the home screen, a " " will be displayed above toner has run out.
