The punch module can be installed on a finisher or saddle
stitch finisher to punch holes in paper to be output.
Punch waste from punched
holes is collected in the punch waste box.
Follow the operation procedure to replace punch waste.

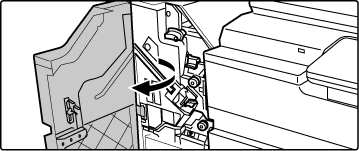

Open the front cover.
-cover_open.png)
Pull out the punch waste box and discard the punch waste.
.png)

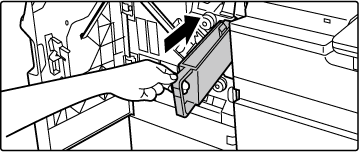

Replace the punch waste box.
If the punch waste box is not replaced properly, printing will not be possible to use the punch function..png)
Close the front cover.
-cover_close.png)
Punch waste from punched holes is collected in the punch
waste box.
Follow the operation procedure to replace punch waste.
Open the front cover.
_01.png)
Grasp the punch waste box handle, gently pull out the box, and discard the punch waste.
Discard the punch waste in a plastic bag or other container, taking care not to let the waste scatter._02_1.png)
_02_2.png)
Gently push the box back in.
_03.png)
Close the front cover.
_06.png)
