- Machine Status Information area
-
Tap this area to display the Machine
Status screen.
MACHINE STATUS SCREEN
- [Home Screen]
-
Switch to the home screen.
- Mode selection area
-
The mode selection screen is displayed.
- Shortcut keys
-
Select shortcut keys for modes or
functions.
MACHINE STATUS SCREEN
- Fixed display key
-
Use these keys to select functions
that make the machine easier to use.
- [Job Management] key
-
Displays the job in progress or waiting
with text or icon.
MACHINE STATUS SCREEN
- Action panel
-
Select functions that can be utilized
in respective modes.
Tap the tab, and the list of function keys is displayed.
ACTION PANEL
- Home screen page switching key
-
Switch the pages for
displaying shortcut keys.
- Clock
-
Displays the time.

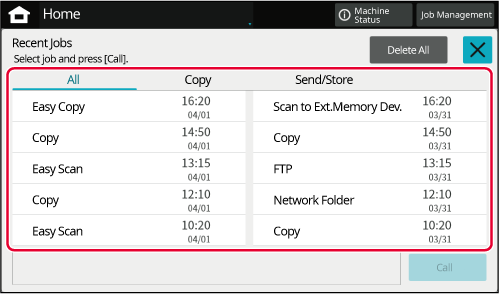

Recent jobs
Tap this key to display the contents of the most recently
used up to 10 jobs in a list.

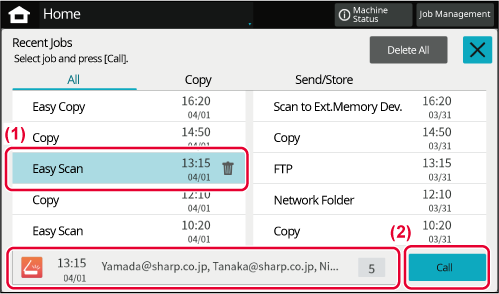

(1) Tap an item in the list and the details of the selected
job will appear at the bottom of the touch panel.
(2) Tap the [Call] key to set the contents of this job.
| Icon |
Machine status |
Icon |
Machine status |
|
|
Printer data is being processed.
|
|
A USB device is installed.
|
|
|
Printer data is being printed.
|
|
The field support system is enabled.
|
|
|
Send data exists.
|
|
Single-byte alphanumeric character entry
|
|
|
Forward error data exists.
|
|
A data security kit is installed.
|
|
|
Received data exists.
|
|
A LAN cable is not connected.
|
|
|
OSA communication is in progress.
|
|
A maintenance notification is issued.
|
|
|
Enlarge display mode is enabled.
|
|
Remote operation is in progress.
|
|
|
Eco mode is enabled.
|
|
Extended FSS function is enabled.
|
CHANGING MODES
Changing mode from the Home screen
Changing
mode from the mode display
In "Settings" (administrator), [System
Settings] → [Common Settings] → [Operational Settings] → [Mode Key
Display Settings] → [Display Mode Selection Screen] can be used
to display or not display the mode selection screen.
In the preview screen, you can view output
images or images stored in the machine using the touch panel.
[Easy
mode]
[Normal
mode]
Keys used in the preview screen
|
|
This changes the mode to edit mode. Pages of the
original can be changed, rotated, or deleted.
|
*
|
This rotates the preview image of whole page in
the arrow's direction. The printing result is not rotated.
|
|
*
|
This reduces the image.
|
,
*
|
This displays preview images of respective pages.
|
|
*
|
This displays the scroll bar for enlargement/reduction
operations.
Moving the slider to the left reduces the image, and
moving the slider to the right enlarges the image.
|
|
This displays thumbnails of preview images.
|
|
*
|
This enlarges the image.
|
*
|
This displays pages in a 3D view.
|
* Can also be used in Easy
mode.
- The display position of an image
can be moved by dragging it while it is enlarged.
- To enlarge an image, double-tap it when
the preview image is displayed by page.
Deleting a page
Moving a page
In the preview screen, tap
to switch to edit mode.
Tap the page you want to move, and drag to move the
page.
You can also move the page by tapping [Move the Page]
on the action panel and then tap
of the destination.
Tap the [Edit End] key.
Rotating a page
In the preview screen, tap
to switch to edit mode.
Tap the page you want to rotate, and drag
or
to rotate the page.
You can also rotate the page by tapping [Rotate 180 Degrees]
(Copy mode only) or [Rotate 90 Degrees] (Scanner mode only) on the action
panel.
Tap the [Edit End] key.
Setting chapter inserts
When N-Up or 2-Sided is specified, you can move a page
marked with
to the first page.
In the preview screen, tap
to switch to edit mode.
Tap the page you want to set chapter inserts.
Tap
.
is displayed on the page.
- You can also set chapter inserts
by tapping [Specify Chapter Inserts] on the action panel.
- To cancel
the Chapter Inserts setting:
Tap displayed on the page, or select the
page and tap [Cancel Chapter Inserts of Selected Page.] on the action panel.
Tap the [Edit End] key.
Inserting a blank page
In the preview screen, tap
to switch to edit mode.
Tap
, and tap
for the location into which you want
to insert a blank page.
You can also insert a blank page by tapping [Insert Blank Page]
on the action panel.
Tap the [Edit End] key.
Deleting part of the original image
In the preview screen, tap
to switch to edit mode.
Tap [Erase Specified Range] on the action panel.
Follow the on-screen instructions to specify the erase
range.
Specify the erase range and then tap the [OK]
key.
To delete the image outside the selected range,
tap [Reverse Erase Range] on the action panel.
On the action panel, select [Apply This Erase Position to All Pages.] or [Apply This
Erase Position to This Page.].
As necessary, repeat the steps to specify the erase
range and the pages to which it is applied.
Tap the [Exit] key.
Changing the settings
Tapping the tab on the left of the screen allows you
to change the settings.
You cannot tap the keys for functions whose settings cannot
be changed.
