Laser printer BP-B550PW

‹-+›

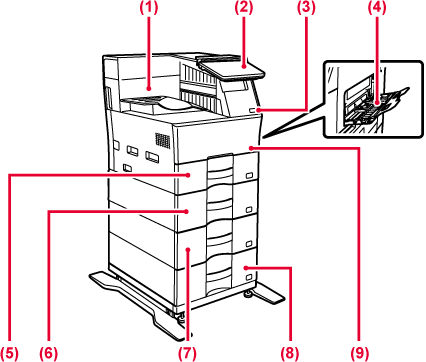

Output tray (exit tray cabinet)

Printed papers are delivered to this tray.

Operation panel

This panel hosts the [Power] button, Information indicator and touch panel.
Use the touch panel to operate each of these functions.
An NFC touch point area mark also appears.

OPERATION PANEL

USB port (A type)

This is used to connect a USB device such as a USB memory device to the machine.
Supports USB 2.0 (Hi-Speed).

Bypass tray

Use this tray to feed paper manually. When loading paper, also open the extension tray.

LOADING PAPER INTO THE BYPASS TRAY

Tray 1

Store paper in this tray.

TRAY 1 - 4

Tray 2 (when a 600-sheet paper feed unit is installed)

Store paper in this tray.

TRAY 1 - 4

Tray 3 (when two 600-sheet paper feed units are installed)

Store paper in this tray.

TRAY 1 - 4

Tray 4 (when three 600-sheet paper feed units are installed)

Store paper in this tray.

TRAY 1 - 4

Front cover

Open this cover to replace a toner cartridge.

REPLACEMENT OF TONER CARTRIDGE

‹-+›

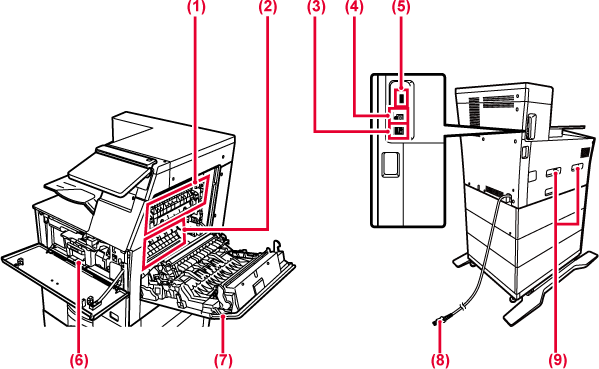

Fusing unit

Heat is applied here to fuse the transferred image onto the paper.

Warning

The fusing unit is hot. Take care not to burn yourself when removing a misfeed.

Photoconductive drum

Images are formed on the photoconductive drum.

Caution

Do not touch or damage the transfer roller. This may cause a defective image.

LAN connector

Connect the LAN cable to this connector when the machine is used on a network.
Use a shielded LAN cable.

USB port (B type)

The machine does not use this connector.

USB port (A type)

This is used to connect a USB device such as a USB memory device to the machine.Supports USB 2.0 (Hi-Speed) and USB3.0 (SuperSpeed).

Toner cartridge

This cartridge contains toner.
When the toner in a cartridge runs out, replace with new one.

REPLACEMENT OF TONER CARTRIDGE

Right side cover

Open this cover to remove a paper misfeed.
And open when user changing the setting to print envelope.

Power plug

Handle

Grasp it when moving the machine.

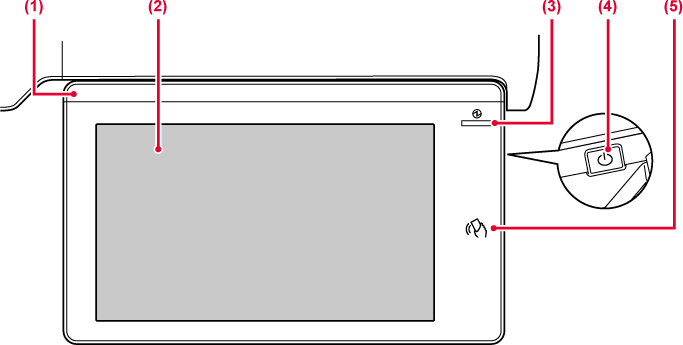

This section describes the names and functions of the respective parts of the operation panel.

‹-+›

Information indicator

This indicator illuminates when the power to the machine is turned on, and when a user logs in to the machine.

INFORMATION INDICATOR

Touch panel

Messages and keys appear on the touch panel display.
Operate the machine by directly tapping the displayed keys.

BEFORE USING THE MACHINE

Power indicator

This indicator lights up when the machine's power switch is on the position. Blinks blue during the time that the [Power] button does not operate immediately after the power plug is inserted into the power outlet.

TURNING ON THE POWER

[Power] button

Use this button to turn the machine's power on and off.

TURNING ON THE POWER

NFC touch point area

NFC can be used when connecting to Synappx Go. For more information, see the Synappx Go manual.

The design of the operation panel may be changed.
You can change the angle of the operation panel.

Caution

Use your finger to operate the touch panel.
Do not touch the touch panel while the unit is starting up. If you touch the touch panel, it may not operate normally.

When turning the machine power ON/OFF; at user authentication when the user has logged in using IC card or NFC; when connecting USB memory to the machine; when starting a job on the machine control panel; or during image adjustment or when adding toner; an error has occurred in the machine, the LED lights and orange in response to the request/operation from the user to communicate to the user the machine status.

This light is used to communicate with users in front of the machine, therefore this is not lit as a result of remote operations.

Lighting patterns

Lighting patterns differ depending on status.

Lighting color	Lighting patterns	Status
Blue	Pattern 1	Job in progress, such as paper feeding or output.
Blue	Pattern 2	Ready state or other state where jobs can be accepted.
Orange	Lights*	Errors that do not stop machine operation, such as almost out of toner.
Orange	Blinks*	Errors that stop machine operation, such as misfeeds and out of toner.
