PART NAMES AND FUNCTION

Fusing unit

Heat is applied here to fuse the transferred image onto the paper.

Warning

The fusing unit is hot. Take care not to burn yourself when removing a misfeed.

USB port (A type)

This is used to connect a USB device such as a USB memory device to the machine.Supports USB 2.0 (Hi-Speed).

USB port (B type)

The machine does not use this connector.

LAN connector

Connect the LAN cable to this connector when the machine is used on a network.
Use a shielded LAN cable.

Toner collection container

This container collects excess toner that remains after printing

REPLACING THE TONER COLLECTION CONTAINER

A service technician collects replaced Toner collection container.

Toner cartridge

This cartridge contains toner.
When the toner in a cartridge runs out, replace with new one.

REPLACEMENT OF TONER CARTRIDGE

Transfer belt

During full colour printing, the toner images of the four colours on the photoconductive drums are combined together on the transfer belt.
During black and white printing, only the black toner image is transferred onto the transfer belt.

Caution

Do not touch or damage the transfer belt.
This may cause a defective image.

Right side cover

Open this cover to replace a toner cartridge.

REPLACEMENT OF TONER CARTRIDGE

Handle

Grasp it when moving the machine.

Rear side cover

Open this cover to remove a paper misfeed.

And open when user changing the setting to print envelope.

Power plug

Telephone line socket (LINE)

When the fax function of the machine is used, the telephone line is connected to this socket.

Extension phone socket (TEL)

When the fax function of the machine is used, an extension phone can be connected to this socket.

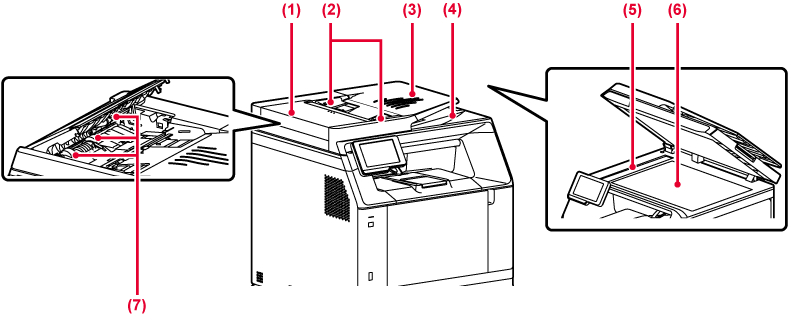

Document feeding cover

Open this cover to remove an original misfeed.
This cover is also opened to clean the paper feed roller.

CLEANING THE PAPER FEED ROLLER

Original guides

These guides help ensure that the original is scanned correctly.
Adjust the guides to the width of the original.

Document feeder tray

Place the original.
Place the original with the print side facing up.

AUTOMATIC DOCUMENT FEEDER

Original exit tray

The original is discharged to this tray after scanning.

Scanning area

Originals placed in the automatic document feeder are scanned here.

CLEANING THE DOCUMENT GLASS AND AUTOMATIC DOCUMENT FEEDER

Document glass

If you want to scan books or other thick originals that cannot be fed through the automatic document feeder, place them on this glass.

DOCUMENT GLASS

Paper feed roller

This roller rotates to automatically feed the original.

This section describes the names and functions of the respective parts of the operation panel.

Information indicator

This indicator illuminates and flashes during execution of a job or when paper misfeeds occur.

INFORMATION INDICATOR

Touch panel

Messages and keys appear on the touch panel display.
Operate the machine by directly tapping the displayed keys.

TOUCH PANEL

You can change the angle of the operation panel.

When turning the machine power ON/OFF; at user authentication when the user has logged in using IC card when connecting USB memory to the machine; when starting a job on the machine control panel; or during image adjustment or when adding toner; a fax is being received or an error has occurred in the machine, the LED lights blue, white and orange in response to the request/operation from the user to communicate to the user the machine status.

Lighting patterns

Lighting patterns differ depending on status.

* If the lighting state and the blinking state overlap, the blinking state takes priority.
