REPLACING THE TONER COLLECTION CONTAINER

The toner collection container collects excess toner that is produced during printing.

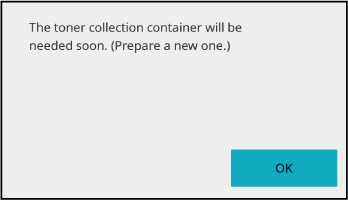

When the toner collection container becomes nearly full, the following message will appear.
Prepare the toner collection container.

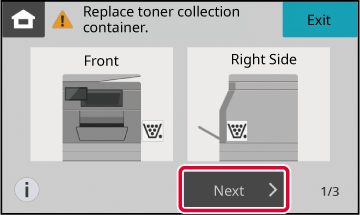

When the toner collection container becomes full, the following message will appear.

Replace the toner collection container as instructed by the message in the touch panel.
When the [Next] key is tapped, instructions for replacing the toner collection container will appear. Follow the instructions. When the toner collection container is replaced, the message will automatically disappear.

Warning

Do not throw the toner collection container into a fire. Toner may fly and cause burns.
Store the toner collection container out of the reach of small children.

Open the right side cover.

Hold both sides and open.

Remove the toner collection container.

While gently pressing down on the hook at the top of the toner collection container, pull the toner collection container toward you.

Place the toner collection container on a flat surface.

Place a sheet of paper such as newspaper on the surface before placing the toner collection container.

Do not point the holes down as used toner will spill out.

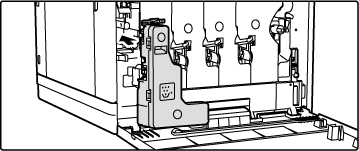

Install a new toner collection container.

Push in the rounded indentation until it “clicks” into position.

Close the right side cover.

Hold both sides and close.

Do not throw away the removed toner collection container, instead place it in the plastic bag provided and keep it in the box in which it was packed. Your service technician will collect them.
Keep the toner collection container in an upright position without collapsing it.
