NETWORK SCANNER MODE

Network scanner mode has two modes: basic mode and menu mode.
Basic mode is limited to frequently used functions that allow you to smoothly perform most image send jobs.
If you need to select detailed settings or special functions, use menu mode.

BASIC MODE

Basic mode makes it easy to select basic settings for network scanner mode.

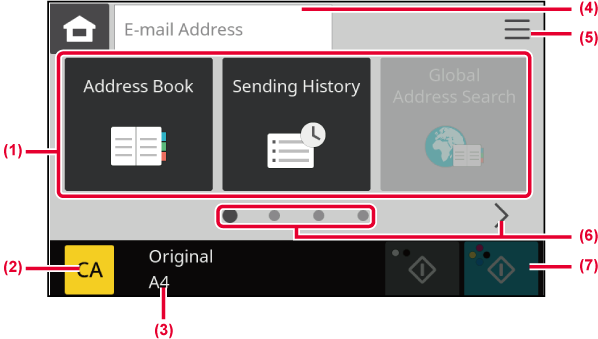

[1st screen]

‹-+›

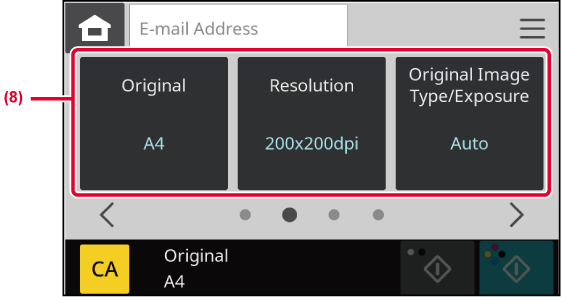

[2nd screen]

‹-+›

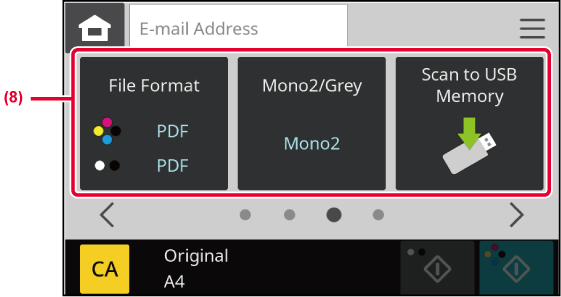

[3rd screen]

‹-+›

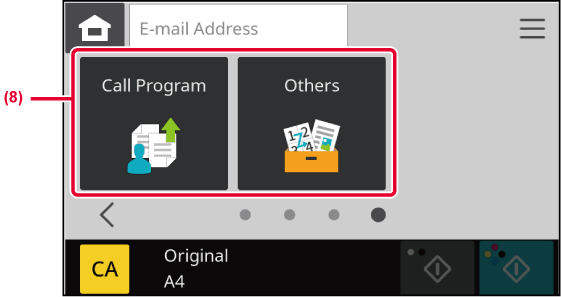

[4th screen]

‹-+›

Set an address.
Reset the address and settings.
The original size is displayed.
Tap to display the soft keyboard.
Switches to menu mode.

MENU MODE

Change the function display.
Starts black and white or colour transmission.
Select the function you want to use.

You can select these functions in basic mode.

  • SPECIFYING THE ORIGINAL SCAN SIZE IN PAPER SIZE
  • CHANGING THE EXPOSURE AND ORIGINAL IMAGE TYPE
  • CHANGING THE RESOLUTION
  • CHANGING FORMAT IN SCAN
  • SCANNING SETTINGS FOR B&W SCANNING
  • SCAN TO USB MEMORY DEVICE
    • If My Address Search is available, the (Find My Address) key will appear next to the address entry.

    MENU MODE

    SELECTING NETWORK SCANNER MODE
