| Icon |
Machine status |
Icon |
Machine status |
|
|
Printer data is being processed.
|
|
Single-byte alphanumeric character entry
|
|
|
Printer data is being printed.
|
|
A data security kit is installed.
|
|
|
OSA communication is in progress.
|
|
Connecting to the access point (Level 4)
|
|
|
Enlarge display mode is enabled.
|
|
Connecting to the access point (Level 3)
|
|
|
Eco mode is enabled.
|
|
Connecting to the access point (Level 2)
|
|
|
A maintenance notification is issued.
|
|
Connecting to the access point (Level 1)
|
|
|
Remote operation is in progress.
|
|
Not connected to the access point
|
|
|
Extended FSS function is enabled.
|
|
Bad connection of the wireless LAN device in the
machine*
|
|
|
A USB device is installed.
|
|
Waiting for the access point
|
|
|
The field support system is enabled.
|
|
A LAN cable is not connected.
|
* Contact your dealer or nearest
SHARP Service Department.
CHANGING MODES

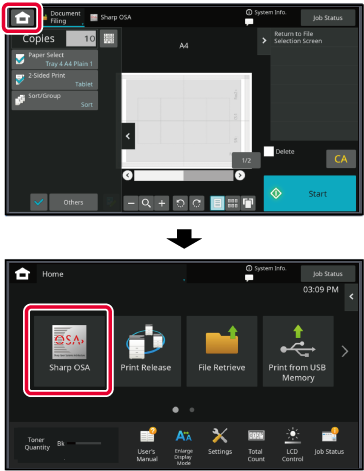

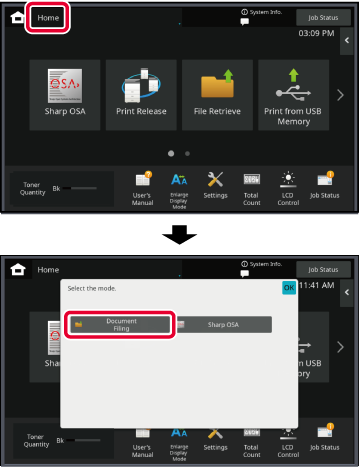

Changing mode from the Home screen
Changing
mode from the mode display
In "Settings" (administrator), [System
Settings] → [Common Settings] → [Operational Settings] → [Mode Key
Display Settings] → [Display Mode Selection Screen] can be used
to display or not display the mode selection screen.

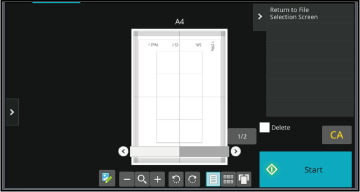

In the preview screen, you can view output
images or images stored in the machine using the touch panel.
Keys used in the preview screen
|
|
This changes the mode to edit mode. Pages of the
original can be changed, rotated, or deleted.
|
|
This rotates the preview image of whole page in
the arrow's direction. The printing result is not rotated.
|
|
|
This reduces the image.
|
,
|
This displays preview images of respective pages.
|
|
|
This displays the scroll bar for enlargement/reduction
operations.
Moving the slider to the left reduces the image, and
moving the slider to the right enlarges the image.
|
|
This displays thumbnails of preview images.
|
|
|
This enlarges the image.
|
|
This displays pages in a 3D view.
|
- The display position of an image
can be moved by dragging it while it is enlarged.
- To enlarge an image, double-tap it when
the preview image is displayed by page.

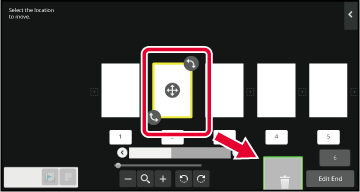

Deleting a page
Moving a page
In the preview screen, tap
to switch to edit mode.
Tap the page you want to move, and drag to move the
page.
You can also move the page by tapping [Move the Page]
on the action panel and then tap
of the destination.
Tap the [Edit End] key.

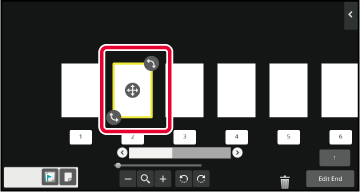

Rotating a page
In the preview screen, tap
to switch to edit mode.
Tap the page you want to rotate, and drag
or
to rotate the page.
Tap the [Edit End] key.
Setting chapter inserts
When N-Up or 2-Sided is specified, you can move a page
marked with
to the first page.
In the preview screen, tap
to switch to edit mode.
Tap the page you want to set chapter inserts.
Tap
.
is displayed on the page.
- You
can also set chapter inserts by tapping [Specify Chapter Inserts] on the action
panel.
- To cancel
the Chapter Inserts setting:
Tap
displayed on the page, or select the
page and tap [Cancel Chapter Inserts of Selected Page.] on the action panel.
Tap the [Edit End] key.

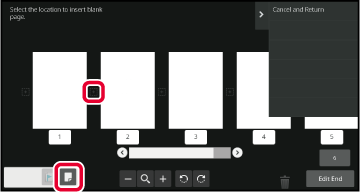

Inserting a blank page
In the preview screen, tap
to switch to edit mode.

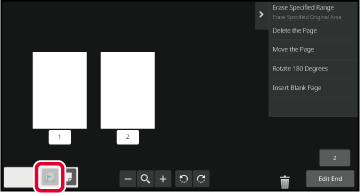

Tap
, and tap
for the location into which you want
to insert a blank page.
You can also insert a blank page by tapping [Insert Blank Page]
on the action panel.
Tap the [Edit End] key.

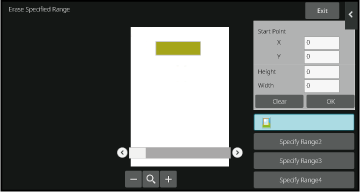

Deleting part of the original image
In the preview screen, tap
to switch to edit mode.

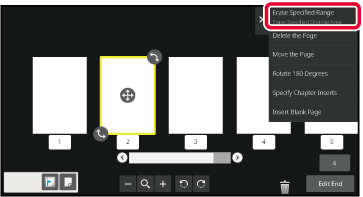

Tap [Erase Specified Range] on the action panel.
Follow the on-screen instructions to specify the erase
range.
Specify the erase range and then tap the [OK]
key.
To delete the image outside the selected range,
tap [Reverse Erase Range] on the action panel.

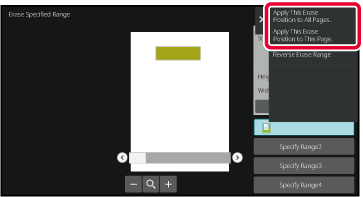

On the action panel, select [Apply This Erase Position to All Pages.] or [Apply This
Erase Position to This Page.].
As necessary, repeat the steps to specify the erase
range and the pages to which it is applied.

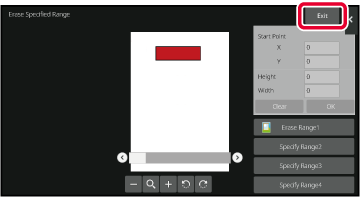

Tap the [Exit] key.

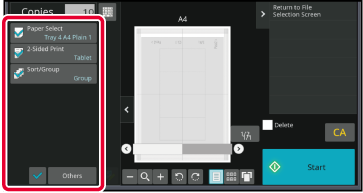

Changing the settings
Tapping the tab on the left of the screen allows you
to change the settings.
You cannot tap the keys for functions whose settings cannot
be changed.
BEFORE USING THE MACHINE
OPERATION OF THE MACHINE
PRINTER
DOCUMENT FILING
CONVENIENT USE OF THE MACHINE
SETTING MODE
TROUBLESHOOTING
APPENDIX
.
.
. To redo the deletion, tap
.
