Digital full colour multifunctional system BP-22C20 / BP-22C25

‹-+›

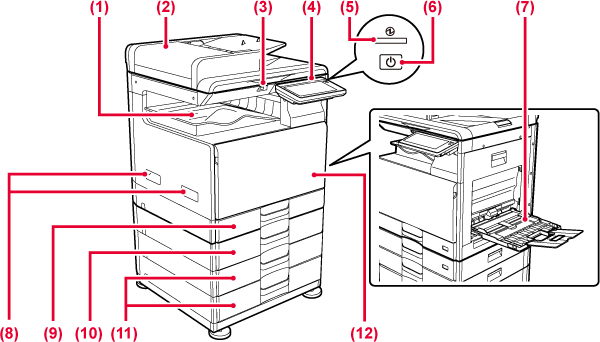

Output tray (exit tray cabinet)

Printed papers are delivered to this tray.

Automatic document feeder

It automatically feeds and scans multiple originals. 2-sided originals can be automatically scanned.

AUTOMATIC DOCUMENT FEEDER

USB port (A type)

This is used to connect a USB device such as a USB memory device to the machine.
Supports USB 2.0 (Hi-Speed).

Operation panel

This panel hosts the Information indicator and touch panel.
Use the touch panel to operate each of these functions.

OPERATION PANEL

Main power indicator

This indicator lights up when the machine's main power switch is in the “” position. Blinks blue during the time that the [Power] button does not operate immediately after the main power switch is switched on.

TURNING ON THE POWER

[Power] button

Use this button to turn the machine's power on and off.

TURNING ON THE POWER

Bypass tray

Use this tray to feed paper manually.
When loading paper, also open the extension tray.

LOADING PAPER INTO THE BYPASS TRAY

Handle

Grasp it when moving the machine.

Tray 1

Store paper in this tray.

TRAY 1

Tray 2 (when a 500-sheet paper feed tray is installed) *

Store paper in this tray.

TRAY 2 - 4 (when 500-sheet paper feed tray and stand/2x500 sheet paper drawer are installed)

Tray 3 - 4 (when stand/2x500 sheet paper drawer is installed) *

Store paper in this tray.

TRAY 2 - 4 (when 500-sheet paper feed tray and stand/2x500 sheet paper drawer are installed)

Front cover

Open this cover to replace a toner cartridge.

REPLACEMENT OF TONER CARTRIDGE

REPLACING THE TONER COLLECTION CONTAINER

‹-+›

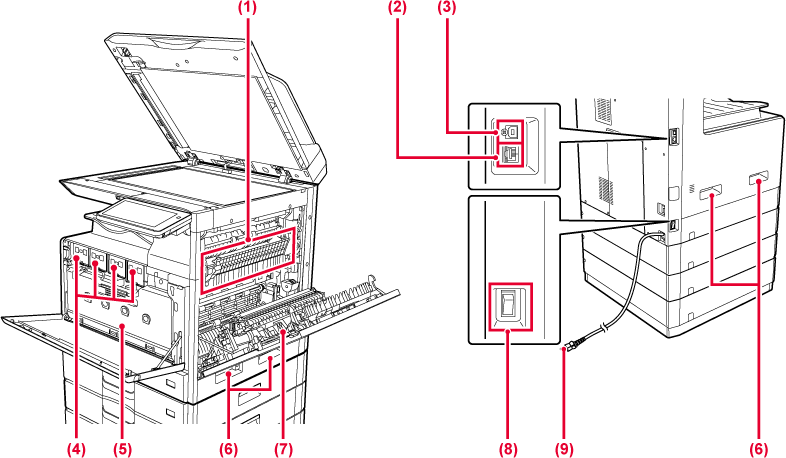

Fusing unit

Heat is applied here to fuse the transferred image onto the paper.

Warning

The fusing unit is hot. Take care not to burn yourself when removing a misfeed.

LAN connector

Connect the LAN cable to this connector when the machine is used on a network.
Use a shielded LAN cable.

USB port (B type)

The machine does not use this connector.

Toner cartridge

This cartridge contains toner.
When the toner in a cartridge runs out, replace with new one.

REPLACEMENT OF TONER CARTRIDGE

Toner collection container

This container collects excess toner that remains after printing

REPLACING THE TONER COLLECTION CONTAINER

A service technician collects replaced Toner collection container.

Handle

Grasp it when moving the machine.

Side cover

Open this cover to remove a paper misfeed.

Main power switch

Use this switch to turn on the power for the machine.

TURNING ON THE POWER

Power plug

‹-+›

Document feeding cover

Open this cover to remove an original misfeed.
This cover is also opened to clean the paper feed roller.

CLEANING THE PAPER FEED ROLLER

Original guides

These guides help ensure that the original is scanned correctly.
Adjust the guides to the width of the original.

Document feeder tray

Place the original.
Place the original with the print side facing up.

AUTOMATIC DOCUMENT FEEDER

Original exit tray

The original is discharged to this tray after scanning.

Scanning area

Originals placed in the automatic document feeder are scanned here.

CLEANING THE DOCUMENT GLASS AND AUTOMATIC DOCUMENT FEEDER

Document glass

If you want to scan books or other thick originals that cannot be fed through the automatic document feeder, place them on this glass.

DOCUMENT GLASS

Paper feed roller

This roller rotates to automatically feed the original.

This section describes the names and functions of the respective parts of the operation panel.

‹-+›

Information indicator

This indicator illuminates and flashes during execution of a job or when paper misfeeds occur.

INFORMATION INDICATOR

Touch panel

Messages and keys appear on the touch panel display.
Operate the machine by directly tapping the displayed keys.

TOUCH PANEL

Main power indicator

This indicator lights up when the machine's main power switch is on the position.
Blinks blue during the time that the [Power] button does not operate immediately after the main power switch is turned on.

TURNING ON THE POWER

[Power] button

Use this button to turn the machine's power on and off.

TURNING ON THE POWER

The design of the operation panel may be changed.
You can change the angle of the operation panel.

Caution

Use your finger to operate the touch panel.
Do not touch the touch panel while the unit is starting up. If you touch the touch panel, it may not operate normally.

When turning the machine power ON/OFF; at user authentication when the user has logged in using IC card when connecting USB memory to the machine; when starting a job on the machine control panel; or during image adjustment or when adding toner; or an error has occurred in the machine, the LED lights blue, white and orange in response to the request/operation from the user to communicate to the user the machine status.

This light is used to communicate with users in front of the machine, therefore this is not lit as a result of remote operations.

Lighting patterns

Lighting patterns differ depending on status.

Lighting colour	Lighting patterns	Status
Blue	Pattern 1	Job in progress, such as paper feeding or output.
	Pattern 2	Ready state or other state where jobs can be accepted.
	Pattern 3	An original has been placed in the document feeder.
Orange	Lights*	Errors that do not stop machine operation, such as almost out of toner.
Orange	Blinks*	Errors that stop machine operation, such as misfeeds and out of toner.
