REPLACING THE TONER COLLECTION CONTAINER

The toner collection container collects excess toner that is produced during printing.

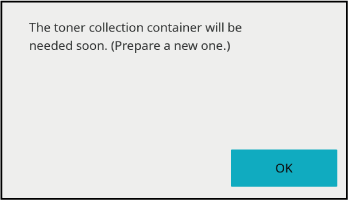

When the toner collection container becomes nearly full, the following message will appear.
Prepare the toner collection container.

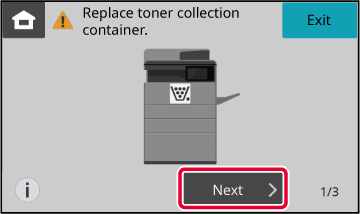

When the toner collection container becomes full, the following message will appear.

Replace the toner collection container as instructed by the message in the touch panel.
When the [Next] key is tapped, instructions for replacing the toner collection container will appear. Follow the instructions. When the toner collection container is replaced, the message will automatically disappear.

Warning

Do not throw the toner collection container into a fire. Toner may fly and cause burns.
Store the toner collection container out of the reach of small children.

Caution

Do not touch the internal cords or connectors.

Open the front cover.

Pull out the toner collection container. Gently pull out the toner cartridge horizontally.

Tip the toner collection container forward and down, and slowly pull up.

Place the toner collection container on a flat surface.

Place a sheet of paper such as newspaper on the surface before placing the toner collection container.

Do not point the holes down as used toner will spill out.

Install a new toner collection container.

Push in the rounded indentation until it “clicks” into position.

Close the front cover.

You cannot close the front cover when the toner collection container is not attached.

Do not throw away the removed toner collection container, instead place it in the plastic bag provided and keep it in the box in which it was packed. Your service technician will collect them.
