REPLACEMENT OF TONER CARTRIDGE
Always replace the toner cartridge after the "Change
the toner cartridge." message appears. You should keep one set of replacement
toner cartridges on hand so that you can replace a toner cartridge
immediately when toner runs out.

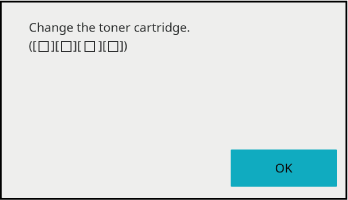

REPLACEMENT MESSAGE
When this message appears, prepare a toner cartridge
for replacement.
(□□□□) shows the colour of the toner cartridge that should
be prepared.
Y: Yellow toner, M: Magenta toner, C: Cyan toner, and Bk:
Black toner
Replace the toner cartridge with a one of the relevant colour.

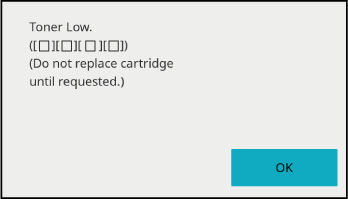

If you continue to use the machine, the following message
will appear when the toner runs out.
Open the front cover.
Pull the toner cartridge toward you.
(1) Yellow(2) Magenta(3) Cyan(4) BlackSpread newspaper or something similar in advance where you
will place the toner cartridge.
(Example) Replacing the yellow toner cartridgeHold the toner cartridge with both hands as shown and slowly
pull it out of the machine.
If the cartridge is pulled out abruptly, toner
may spill out.
Take out a new toner cartridge from its package and
shake it horizontally five or six times.
Slowly insert the new toner cartridge on the level.
Press in firmly until you hear a "click" sound.
Close the front cover.
After the toner cartridge is replaced, the machine automatically
enters image adjustment mode. Do not open the front cover while
this is occurring.
Hold both sides and close.
Warning
- Do not throw a toner cartridge into
a fire. Toner may fly and cause burns.
- Store toner cartridges out of reach of
small children.
- If a toner cartridge is stored upright,
the toner may harden and become unusable. Always store toner cartridges
on their side.
- If a toner cartridge other than a SHARP-recommended
toner cartridge is used, the machine may not attain full quality
and performance and there is a risk of damage to the machine. Be
sure to use a SHARP-recommended toner cartridge.
- If any one of the toner colours runs
out, colour printing will no longer be possible.
If the
Y, M, or C toners run out but a quantity of Bk toner still remains,
printing is performed in black and white.
- Depending on your conditions of use, the
colour may become light or the image blurred.
- Be sure to install four toner cartridges
(Y/M/C/Bk).
- Do not throw away the removed toner cartridge,
keep it in the box in which it was packed. Your service technician
will collect them.
- To view the approximate amount of toner
remaining (indicated in %), hold down the [Home Screen] key during
printing or in standby mode. When the percentage falls to "25-0%",
keep a toner cartridge for replacement purposes before toner runs out.
- When toner runs out while the home screen
is displayed, the "Toner Empty" message appears in the screen. Additionally, if
the toner quantity is displayed on the home screen, a "
" will be displayed above colours for
which toner has run out.
