TRAY 1
A maximum of 250 sheets of paper from size A5R to A3
(5-1/2" x 8-1/2"R to 11" x 17") can be loaded into tray 1.
If you loaded paper of a different type or size
from the paper previously loaded, be sure to check the settings
in "Settings (administrator)". Incorrect setting affects automatic
paper selection action. It may cause print failure, printing on
paper of a wrong size or type or paper misfeeds.
Caution
Do not place heavy objects on the tray or press
down on the tray.
To
check the type and size of paper:
In the Web page, select [Status] → [Machine Identification]
→ [Paper Input Tray Status]→ [Paper Tray Settings].
To set
the type and size of paper:
[Tray Settings] in the home scree
Pull out the paper tray.
Gently pull the tray out until it stops.
Push the centre of the pressure plate down until it locks
into place.
If you want to re-load the same sheet of paper, proceed
to Step 3.
To load paper of a different size, proceed to the next
step.

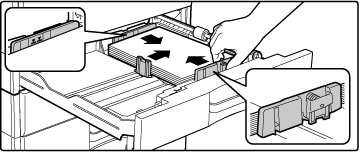

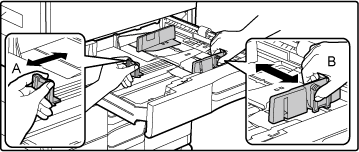

Adjust guide plates A and B to match the longitudinal
and transversal dimensions of the paper to be loaded.
The guide plates A and B are slidable. Squeeze the separator
plate lever and slide to the desired paper size.
Fan the paper.
Fan the paper well before loading it. If the paper is
not fanned, multiple sheets may feed at once and cause a misfeed.

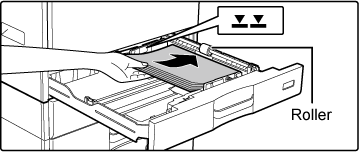

Insert the paper into the tray.
Load the paper with the print side facing
up.
Place the paper under the roller on the
right side of the tray.
- If
a paper misfeed occurs, turn the paper over and/or around, and reload.
- If the
paper is curled, fix the curl before loading the paper.
- Adjust
the divider plate so that there is no gap between the paper and
divider plate.
- Do not
add paper.
- Do not load the paper as shown below.
- To load
11" x 17" paper

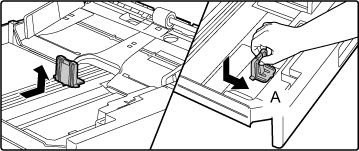

Remove
the divider plate.Move the divider plate all the way over to the
paper feed opening side (right side), and pull up to remove. Insert
the removed divider plate into A.
- The stack must not be higher than the indicator
line (Maximum of 250 sheets).
Gently push the paper tray into the machine.
Push the tray firmly all the way into the machine slowly.
Forcefully inserting the tray may cause the paper to
be skewed and misfeed.
