DOCUMENT GLASS

This section describes the steps for setting the original on the document glass.

Warning

  • Close the automatic document feeder slowly. Abruptly closing the automatic document feeder may damage it.
  • Take care that your fingers are not pinched when closing the automatic document feeder.
If the original is not detected, a message will be displayed. Reload the original again.

Allowed original sizes

Minimum original size Maximum original size

Standard size

A5: 210 mm (longitudinal) × 148 mm

5-1/2" (longitudinal) × 8-1/2" (transversal)

Non-standard size

(Minimum size that can be specified manually)

25 mm (longitudinal) x 25 mm (transversal)

1" (longitudinal) x 1" (transversal)

Standard size

297 mm (longitudinal) x 420 mm (transversal) or A3

11" (longitudinal) x 17" (transversal)

Non-standard size

(Maximum size that can be specified manually)

297 mm (longitudinal) x 432 mm (transversal)

11-5/8" (longitudinal) x 17" (transversal)
When the original is a non-standard size, see the appropriate explanation below for the mode you are using.

Open the automatic document feeder.

Load the paper with the print side facing down.

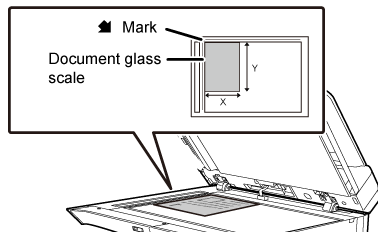

Place the original face down and align the top left corner of the original with back left (at the tip of the mark ) of the document glass.

Close the automatic document feeder.

After placing the original, close the automatic document feeder. If the unit is left open, parts outside of the original will be copied in black, causing excessive use of toner.
  • When closing, open the automatic document feeder all the way and then close it.
  • If originals have damp spots due to correction fluid, ink or paste up glue, wait until the originals are dry before making copies. Otherwise the interior of the machine or the document glass may be soiled.
