Programs are set from the base screen of menu mode.
BASIC MODE
This function collectively
stores copy settings as one program. The stored program can be retrieved
using an easy operation.
For information about how to retrieve a program, see "
RETRIEVING A PROGRAM".

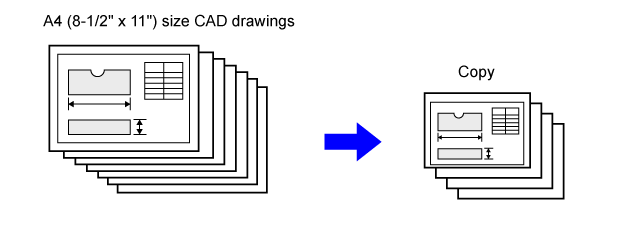

For example, suppose A4 (8-1/2" x 11") size CAD drawings are
copied once a month for archive purposes using the following settings:
| When a job program is not stored | When a job program is stored |
|---|---|
|
Set reduction from A5 (5-1/2" x 8-1/2") to A4 (8-1/2" x 11")  Change the exposure setting. Set 2-sided copying. Tap the [Colour Start] or [B/W Start] key. |
Retrieve the stored program. Tap the [Colour Start] or [B/W Start] key. |
|
Considerable time is required to copy the drawings each month because the above settings must be selected. In addition, mistakes are occasionally made when selecting the settings, so some copies must be redone. |
The settings are stored in a program, so they can be selected by the touch of a key. This is simple and takes no time. In addition, the settings are all stored so there are no chances for mistakes, and thus no need to redo copies due to setting mistakes. |
Specify the copy function to be stored.
Tap the [Menu] icon and tap [Program Registration/Deletion].

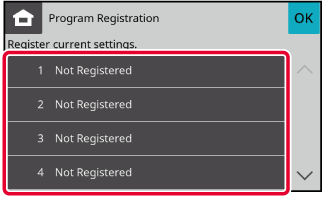

Tap [Program Registration].
Tap an unused key.
A key with a program registered is marked with a checkmark.

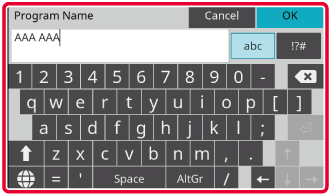

Set a name for the program and tap the [OK] key.
A registration completion message appears.
Tap the [Call Program] key.
Tap the key of the program you want to retrieve.
This section explains how to delete copy
settings in a program and rename a program.
Tap the [Menu] icon and tap [Program Registration/Deletion].
Tap [Delete Program].
Tap the key of the program you want to delete, and tap [Delete].
Tap the [Menu] icon and tap [Program Registration/Deletion].
Tap [Change Program Name].
Tap the key of the required program, and rename the program. Then tap the [OK] key.
After the settings are completed, tap [OK] key.Version 01a / bp22c25_usr_01a_en
