REMOTE OPERATION OF THE MACHINE

Remotely operate the machine on your computer or mobile device such as smartphone.

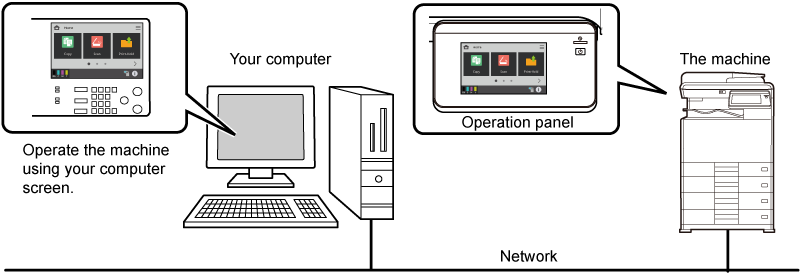

You can operate the machine from the same panel as the machine's operation panel that is displayed on your PC, with the same feel as operating in front of the machine.

The remote operation function can only be used on one device at a time.
Before you can use the remote operation function, the following preparation is required.

  • From the operation panel, select [System Settings] → [Common Settings] → [Operation Settings] → [Remote Operation Settings] → [Remote Software Operation] and select [Allow] for [Operational Authority].
  • Connect the machine to the network.
  • Install a VNC application software in your device.
After the preparation is completed, you can operate the machine from a VNC client. For instructions on how to connect to the machine from a VNC client, see the VNC application manual.
  • When the VNC client connects to the machine, a message will appear on the operation panel of the machine. Follow the message on the operation panel of the machine to permit the connection.
  • When the machine is connected to a VNC application software, appears on the fixed display area of the machine's touch panel. If you wish to disconnect, exit the VNC application software or tap .
  • Use the operation panel in the same way as you would on the machine. However, you cannot enter values in series by continuously clicking the key.
