Digital full colour multifunctional system BP-22C20 / BP-22C25

You can scan a business card.

Place one business card that you want to scan on the document glass.

DOCUMENT GLASS

Cautions when placing business cards

Available business card sizes are 55 x 91 mm to 110 x 110 mm.
If the shape of a business card is not square or rectangular, the business card may not be cropped correctly.

Keep the auto document feeder open, not closed.

If you scan the business card with the auto document feeder closed, it will not be possible to detect the outlines of the business card and scanning will fail. Always use this function with the auto document feeder open. If a light source such as an electric light shines onto the originals during scanning, cropping may not be successful. Adjust the angle of the automatic document feeder so that the light source does not affect the image.

Caution

Do not look directly at the light during scanning.

Specify the destination.

RETRIEVING A DESTINATION FROM AN ADDRESS BOOK
VIEWING A LIST OF THE SELECTED DESTINATIONS
ENTER DESTINATION MANUALLY
RETRIEVING A DESTINATION FROM A GLOBAL ADDRESS BOOK
USING A TRANSMISSION LOG TO RESEND

Tap the [Others] key, and tap the [Bus. Card Scan] key.

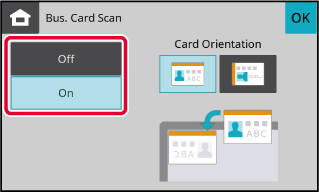

Tap the [On] key, and change settings as needed.

When you have completed the settings, tap

.

To cancel the business card scan setting
Tap the [Off] key.

Tap the [Colour Start] or [B/W Start] key to start scanning the originals.

When scanning is completed, place the next group of originals and tap the [Colour Start] or [B/W Start] key.
Repeat the above step until you have scanned all originals, and then tap the [Read-End] key.
When transmission is completed, a beep sounds.

When the Business Card Scan setting is cancelled, the following items retain the setting changes that occurred when Business Card Scan was enabled. Resolution, File Type
Depending on the business card, it may not be extracted to the file correctly.

When this function is enabled, margins (void areas that are not scanned) are created around the edges of the machine's maximum scanning area.
Void area: 2.5 mm (7/64") from the top, bottom, left, and right edges

Place the original.

Place the original in the document feeder tray of the automatic document feeder, or on the document glass.
AUTOMATIC DOCUMENT FEEDER
DOCUMENT GLASS

Specify the destination.

RETRIEVING A DESTINATION FROM AN ADDRESS BOOK
VIEWING A LIST OF THE SELECTED DESTINATIONS
ENTER DESTINATION MANUALLY
RETRIEVING A DESTINATION FROM A GLOBAL ADDRESS BOOK
USING A TRANSMISSION LOG TO RESEND

Tap the [Others] key, and tap the [Void Area] key.

A checkmark appears on the icon.
After the settings are completed, tap the [OK] key.

To cancel the Void Area setting
Tap the [Void Area] key to uncheck it.

Tap the [Colour Start] or [B/W Start] key to start scanning the originals.

A beep will sound to indicate that scanning and transmission have ended.

When you place the original on the document glass, scan each page one at a time.

When scanning finishes, place the next original and tap the [Colour Start] or [B/W Start] key.
Repeat until all pages have been scanned and then tap the [Read-End] key.

Use this function when you wish to scan thin originals using the automatic document feeder. This function helps prevent thin originals from misfeeding.

‹-+›

Place the original in the document feeder tray of the automatic document feeder.

Adjust the original guides slowly.
AUTOMATIC DOCUMENT FEEDER

If the originals are inserted with too much force, they may crumple and misfeed.

Specify the destination.

RETRIEVING A DESTINATION FROM AN ADDRESS BOOK
VIEWING A LIST OF THE SELECTED DESTINATIONS
ENTER DESTINATION MANUALLY
RETRIEVING A DESTINATION FROM A GLOBAL ADDRESS BOOK
USING A TRANSMISSION LOG TO RESEND

Tap the [Others] key, and tap the [Slow Scan Mode] key.

A checkmark appears on the icon.
After the settings are completed, tap the [OK] key.

To cancel the slow scan Mode setting
Tap the [Slow Scan Mode] key to uncheck it.

Tap the [Start] key to start scanning of the original.

A beep will sound to indicate that scanning and transmission have ended.
